Bubble sizes out of order, when using a formula for the `color`/`name` attributes

[JElchison]

Hi folks, I'm seeing a strange effect on scatter plot marker sizes, when using a formula for the color (and name) attributes.

(edited to add more test cases)

library(plotly)
#> Loading required package: ggplot2
#>
#> Attaching package: 'plotly'
#> The following object is masked from 'package:ggplot2':
#>
#>     last_plot
#> The following object is masked from 'package:stats':
#>
#>     filter
#> The following object is masked from 'package:graphics':
#>
#>     layout

df <- data.frame(x = c(1, 2, 3, 4, 5),
                 y = c(1, 2, 3, 4, 5),
                 z = c(1, 2, 3, 4, 5))

# Expected output: marker sizes in order
plot_ly(df,
        x = ~x,
        y = ~y,
        type = "scatter",
        mode = "markers",
        marker = list(size = ~z,
                      sizeref = 0.1),
        color = ~z < 2,
        colors = c(I("green"), I("red")),
        text = ~paste0("z: ", z))

# df has correct data
df
#>   x y z
#> 1 1 1 1
#> 2 2 2 2
#> 3 3 3 3
#> 4 4 4 4
#> 5 5 5 5

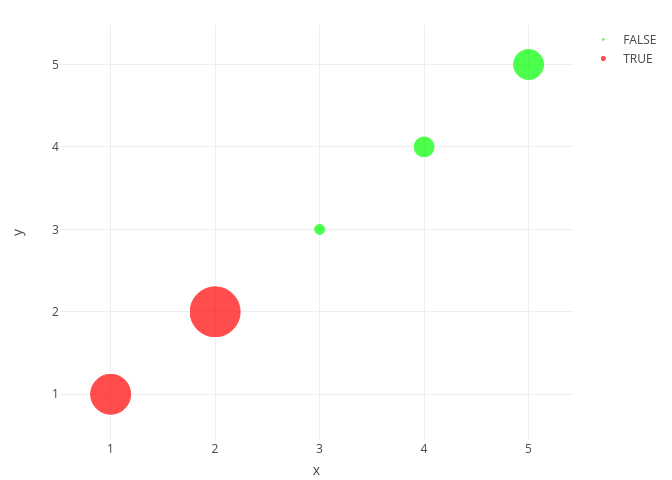

# Buggy output: changing "color" formula threshold puts marker sizes out of order
plot_ly(df,
        x = ~x,
        y = ~y,
        type = "scatter",
        mode = "markers",
        marker = list(size = ~z,
                      sizeref = 0.1),
        color = ~z < 3,
        colors = c(I("green"), I("red")),
        text = ~paste0("z: ", z))

# df still has correct data
df
#>   x y z
#> 1 1 1 1
#> 2 2 2 2
#> 3 3 3 3
#> 4 4 4 4
#> 5 5 5 5

# Buggy output: static vector also puts marker sizes out of order
plot_ly(df,
        x = ~x,
        y = ~y,
        type = "scatter",
        mode = "markers",
        marker = list(size = ~z,
                      sizeref = 0.1),
        color = c(TRUE, TRUE, FALSE, FALSE, FALSE),
        colors = c(I("green"), I("red")),
        text = ~paste0("z: ", z))

# Buggy output: use ifelse with (TRUE, FALSE)
plot_ly(df,
        x = ~x,
        y = ~y,
        type = "scatter",
        mode = "markers",
        marker = list(size = ~z,
                      sizeref = 0.1),
        color = ~ifelse(z < 3, TRUE, FALSE),
        colors = c(I("green"), I("red")),
        text = ~paste0("z: ", z))

# Possible workaround: use ifelse with (1, 0)
plot_ly(df,
        x = ~x,
        y = ~y,
        type = "scatter",
        mode = "markers",
        marker = list(size = ~z,
                      sizeref = 0.1),
        color = ~ifelse(z < 3, 1, 0),
        colors = c(I("green"), I("red")),
        text = ~paste0("z: ", z))

# Buggy again when adding "name" field with formula
plot_ly(df,
        x = ~x,
        y = ~y,
        type = "scatter",
        mode = "markers",
        marker = list(size = ~z,
                      sizeref = 0.1),
        color = ~ifelse(z < 3, 1, 0),
        colors = c(I("green"), I("red")),
        name = ~ifelse(z < 3, "Red", "Green"),
        text = ~paste0("z: ", z))

^{Created on 2024-04-06 with reprex v2.1.0}
